Geocell System — Supply Standards, Installation Process & Ground Stability
Geocells, or Cellular Confinement Systems (CCS), are three-dimensional honeycomb structures made of High-Density Polyethylene (HDPE). They are used to stabilize weak soils, control erosion on slopes, and reinforce load-bearing surfaces like roads and railways.
1. Supply Specifications:

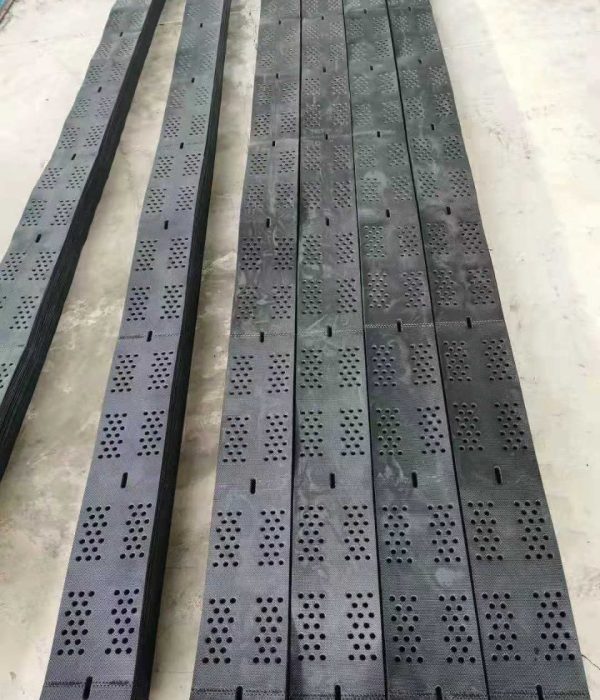

Geocells are typically supplied in collapsed, accordion-like panels that expand into a large grid.
Material: Usually UV-stabilized HDPE with a thickness of 1.2mm to 1.5mm.
Cell Depth: Standard heights range from 75mm to 200mm.
2. Installation Process:
Installation follows a systematic sequence to ensure the cellular confinement works effectively:
Site Preparation: Clear vegetation and debris. Level and compact the subgrade to the required engineering specifications.

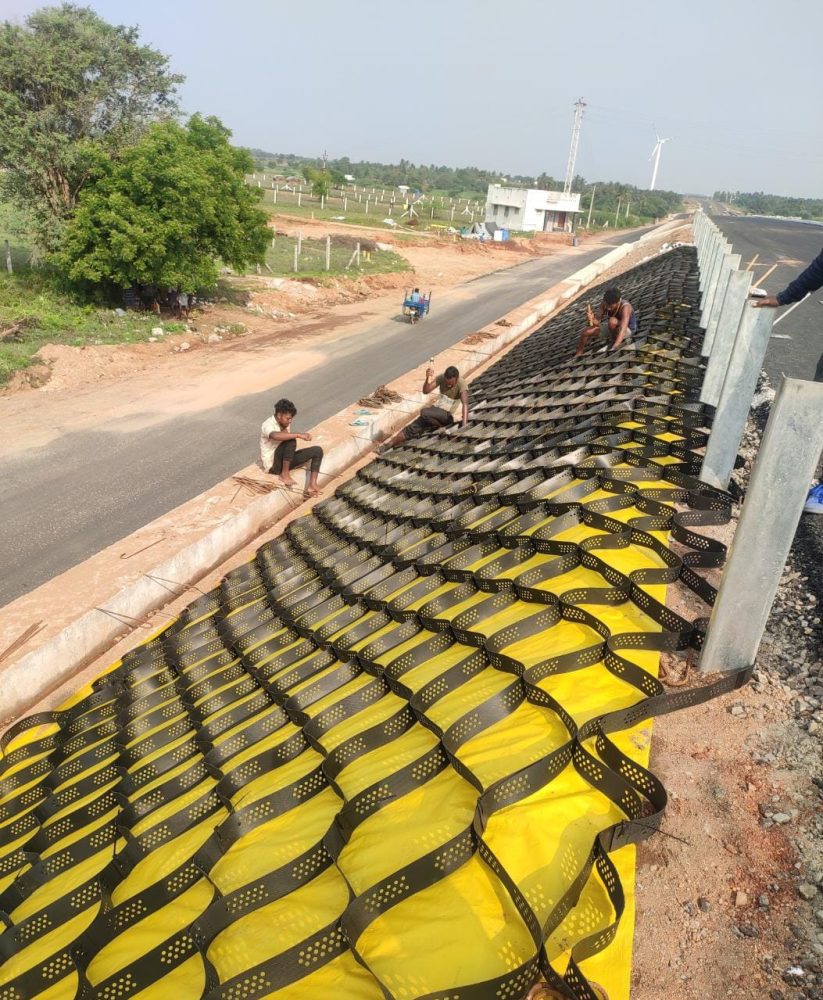

Geotextile Underlay: Lay a non-woven geotextile fabric over the subgrade to act as a separator and prevent soil migration.

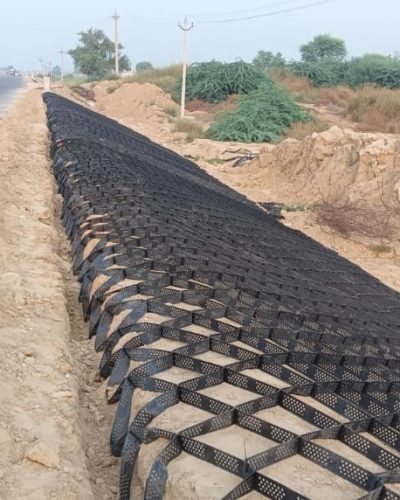

Deployment: Expand the geocell panels across the area. Use temporary stakes or sandbags to hold them in the fully open "honeycomb" position.
Anchoring: Secure the panels using J-hooks, steel rebar stakes, or tendons, especially on slopes (staggered pattern every 0.5m–1.0m).

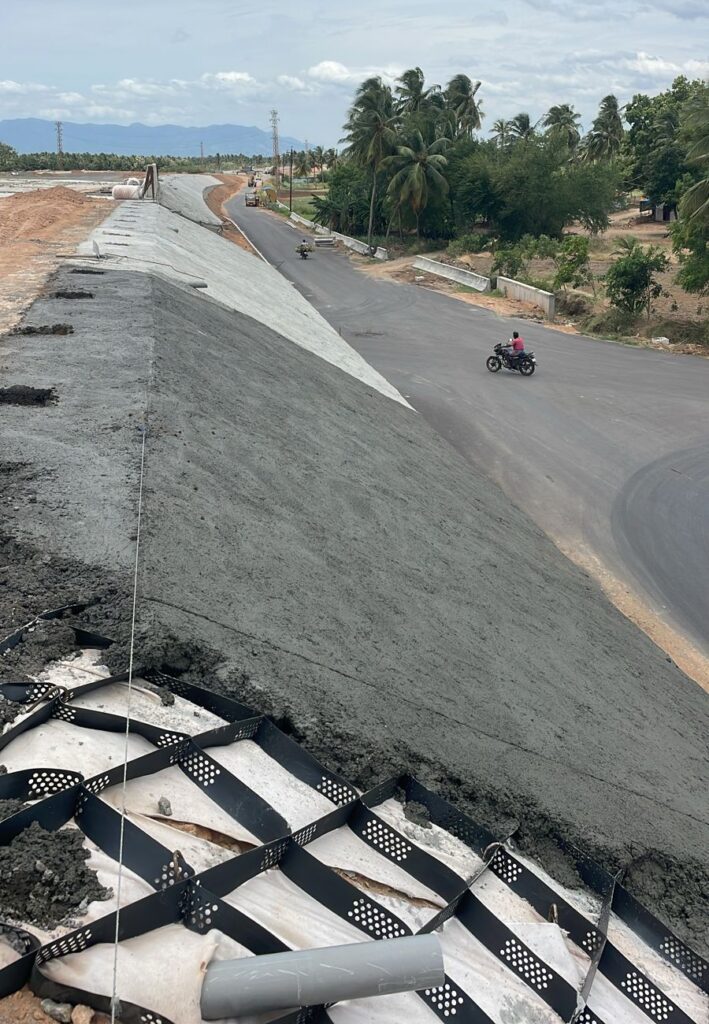

Infilling: Fill the cells with aggregate (for roads), topsoil (for vegetated slopes), or concrete (for channels). Infill should be 25–50mm higher than the cell wall to allow for settling.
Compaction: Use a plate compactor or roller to achieve at least 95% density.
1. What are geocells mainly used for?
Geocells are used for soil stabilization, erosion control on slopes, and strengthening load-bearing surfaces like roads, railways, and channels.
2. Why is a geotextile underlay placed below geocells?
A non-woven geotextile acts as a separator, preventing soil mixing and improving drainage, which increases the stability of the entire system.
3. How are geocells anchored during installation?
They are secured using J-hooks, steel rebar stakes, or tendons. On slopes, anchors are installed in a staggered pattern to keep the panels stable during infill and compaction.
4. What materials can be used to fill geocells?
Depending on the application, cells can be filled with aggregate for roads, topsoil for vegetation, or concrete for channels and high-strength surfaces.
